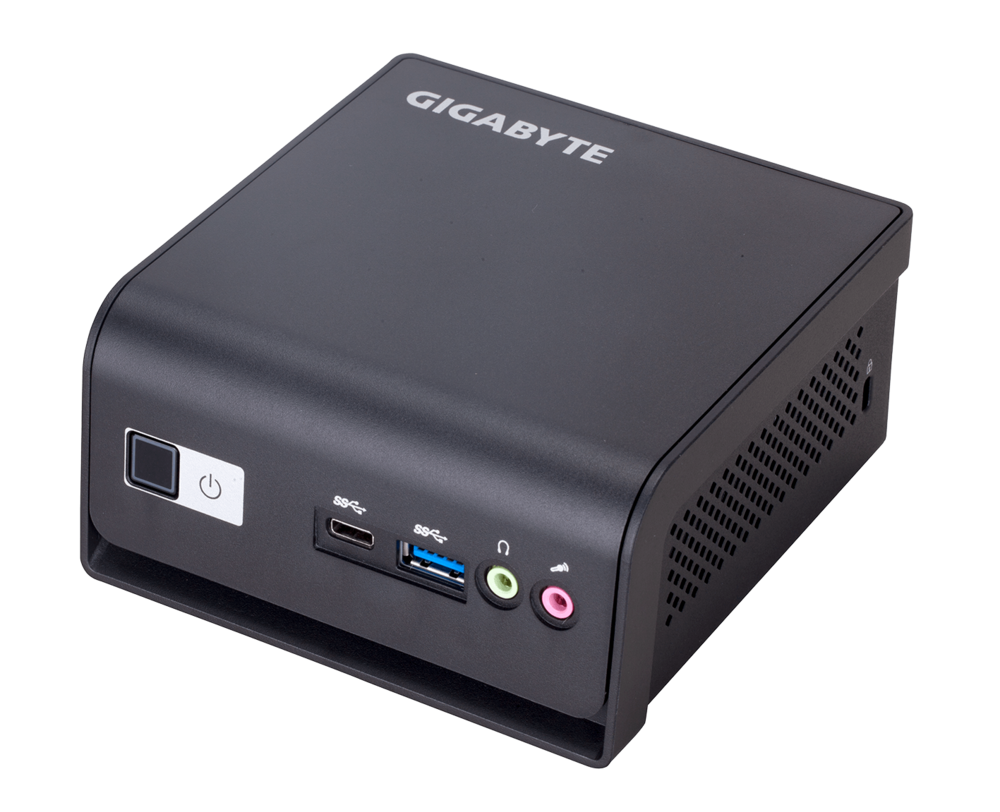

Desktop PC Gigabyte Brix Intel Pentium N6005 up to 2.8 GHz, 1 x SO-DIMM DDR4, m.2 SSD
Ref. number: GA-PC-BMPD-6005
Price: 493.00 BGN
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 24 months |
| Product code | GB-BMPD-6005 |
| Barcode | 4719331600846 |
| Type |
Mini PC
|
| CPU type |
Pentium
|
| CPU model |
Intel Pentium N6005
|
| Frequency CPU |
2.8 GHz
|
| Cache CPU (MB) |
4
|
| Number of cores |
4
|
| Memory type |
DDR4 SO-DIMM
|
| RAM capocity (GB) |
0 GB
|
| Frequency Memory |
2933 MHz
|
| Memory slots |
1
|
| Supported Memory |
16GB
|
|
Intel® UHD Graphics 605
|
|
| Type video memory |
Integrated
|
| Interfaces |
Front I/O
1 x USB3.0
1 x USB3.0 type C
1 x headphone jack with MIC; Rear I/O
1 x HDMI(2.0a)
1 x mini DisplayPort (1.2a)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
|
| I/O controller on board |
1 х Serial ATAIII
|
| Audio |
Realtek ALC255
|
| slots |
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
1 x M.2 slot (2280_storage) PCIe X2/SATA
|
| Storage type |
HDD + SSD
|
| HDD capacity (GB) |
0 GB
|
| HDD interface |
SATAIII
|
| Optical device |
n/a
|
| Network |
Gigabit LAN (Realtek RTL8111HS)
|
| Wireless |
Wireless-802.11 AC
|
| Operating system |
No OS
|
| Power Supply (W) |
External adapter; Input; AC 100-240V; Output: DC 19V 2.1A
|
| Dimension (mm) |
46.8 mm x 112.6 mm x 119.4 mm
|
| Color |
Black
|
| CPU Socket |
FCBGA1338
|
| CPU Manufacturer |
Intel®
|
| Architecture CPU |
Jasper Lake
|
| For |
Home Office
|
Description
- Ultra compact PC design at only 0.67L (56.22x103x116.52mm)
- 1st 10 nm small core CPU
- Support M.2 2280 slot for SSD (support PCI-e x2+SATA)
- Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
- 1 x SO-DIMM DDR4 slots support 2933MHz, Max 16GB
- 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2
- Realtek 8111HS Gigabit LAN
- HDMI 2.0b support 4K@60P HDR10
- mDP 1.4b support 4K@60P HBR2
- Realtek ALC255 Codec
- 4 x USB 3.1 (1 x USB Type-C)
- Headphone Jack
- Mic-phone Jack
- VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
- AC-DC adapter : 100-240V input, 19V 65W
- OS Support : Microsoft Windows 10 64Bit
- 1x Kensington Lock slot
- System Environment Operating Temperature: 0°C to +35°C
- System Storage Temperature: -20°C to +60°C
