Description

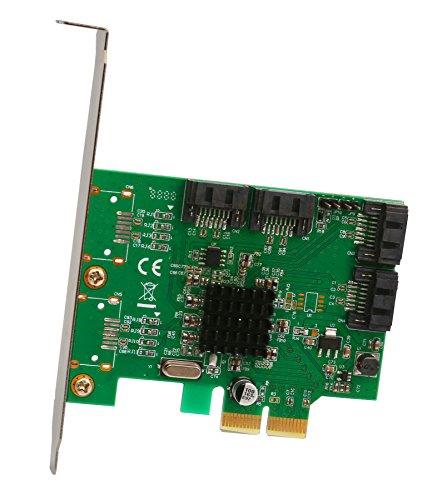

The PCI Express card by Delock expands a PC by four internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.

Specification
• Connector:
  internal:
    4 x SATA 6 Gb/s 7 pin plug
    1 x PCI Express x4, V2.0
    2 x pin header for PWR LED for indication of hard drive accessing
• Chipset: Marvell 88SE9230
• Data transfer rate up to 6 Gb/s
• Supports RAID 0, RAID 1, RAID 10, Port Multiplier, HyperDuo Virtual Disk (Safe/Capacity)
• Supports HDD and SSD
• Supports Native Command Queuing (NCQ)

System requirements
• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.7
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content
• PCI Express card
• Low profile bracket
• LED cable
• Driver CD
• User manual
