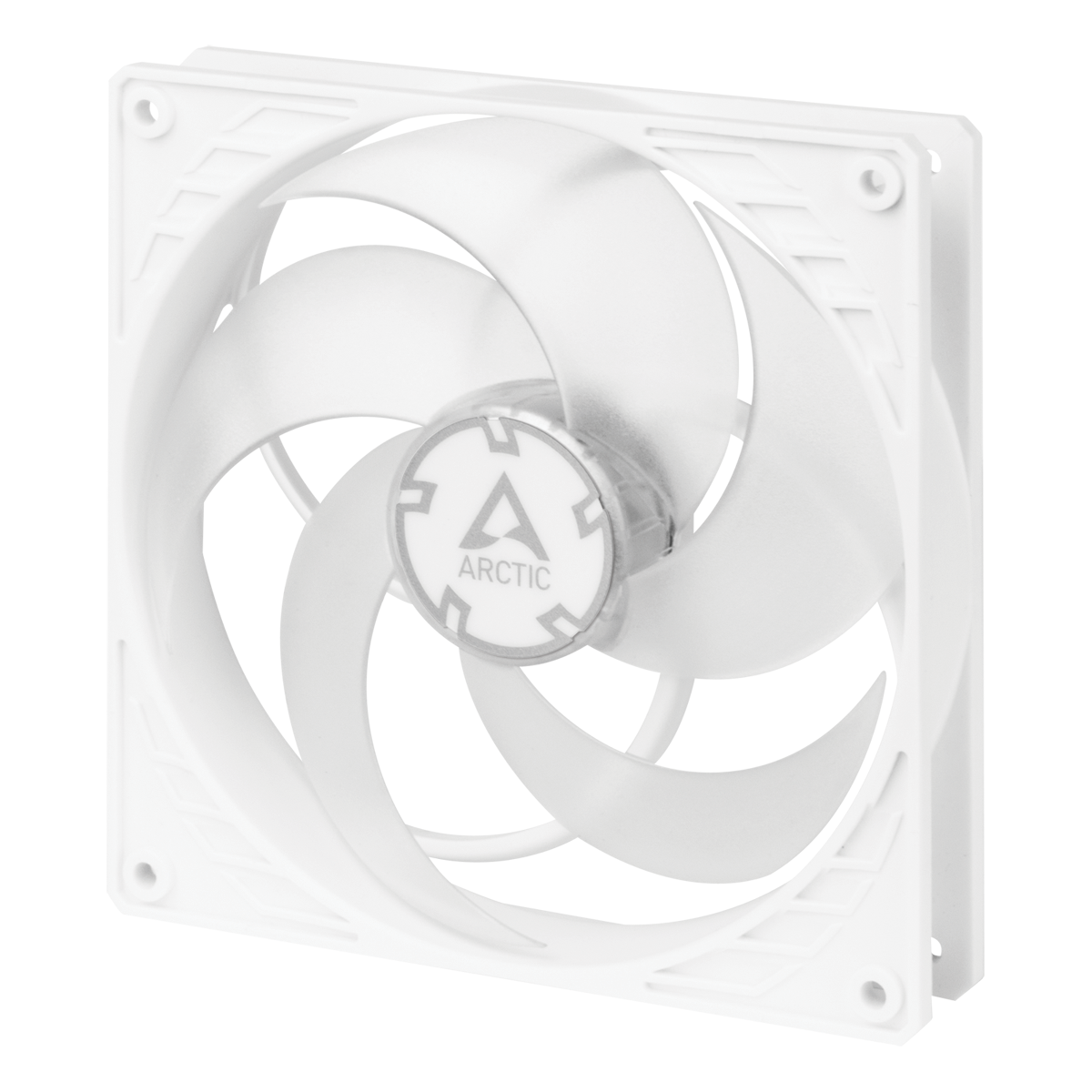

Fan ARCTIC P14 PWM White/Transparent
Manufacturer | ARCTIC |
Warranty | 72 months |
Product code | ACFAN00223A |
Barcode | 4895213703109 |
Application |
Cooler box
|
Dimension |
140
|
Speed fan |
200 - 1700 RPM
|
Connector |
4 PIN
|
Noise Level | |
CFM |
72.8
|
Other |
During the development of the new P14 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM is particularly suitable for use on heatsinks and radiators. The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
Fan Dimensions: 140 x 140 x 27 mm
Fan Speed: 1,700 RPM
Noise Level: 0.3 Sone (@ 1,700 RPM)
Typical Voltage: 12V DC
Start-up Voltage: 3.9V DC
Cable Length: 400mm
Connector: 4 Pin
