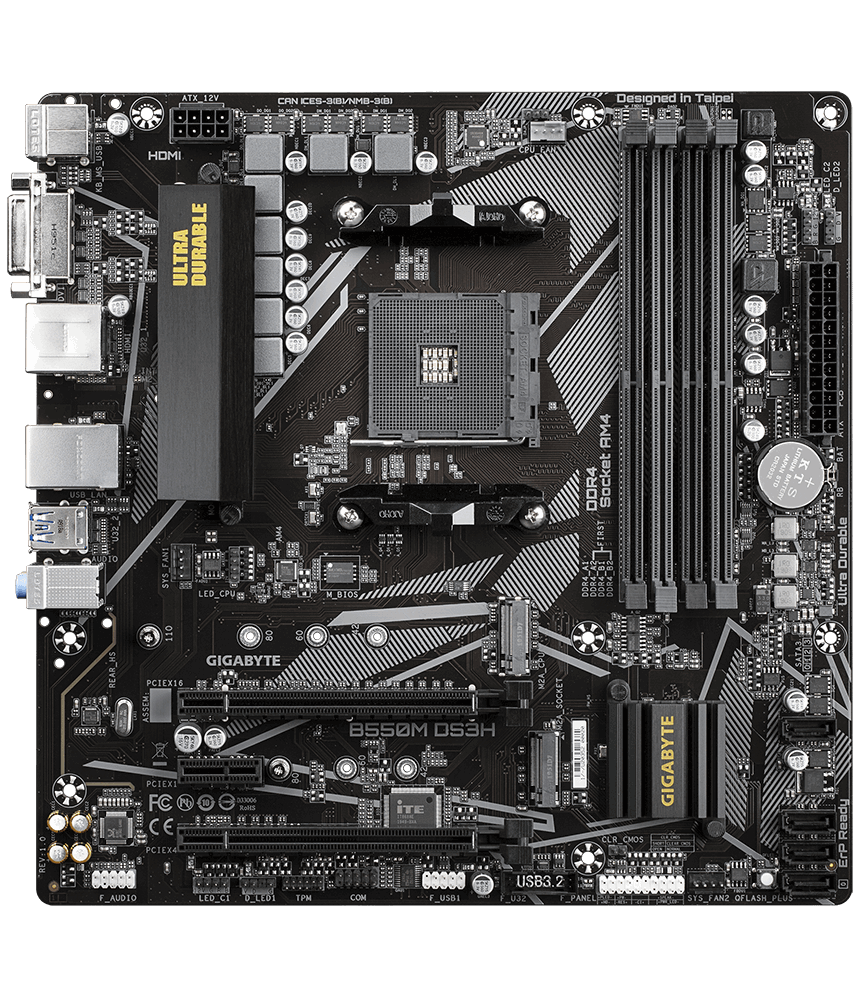

Motherboard GIGABYTE B550M DS3H, Socket AM4, 4 x DDR4
Ref. number: GA-MB-B550M-DS3H
Price: 206.20 BGN
Specifications
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | B550M DS3H |
| Barcode | 4719331809416 |
| CPU Socket |
AM4
|
| Chipset |
AMD B550
|
| CPU supports | |
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
4733(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC887
|
| Integrated LAN |
Realtek GbE LAN (10/100/1000 Mbit)
|
| Integrated Wi-Fi | |
| PCI-E x16 |
1
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 PCIE 3.0 x4 and SATA modes
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24-pin;1 x 8-pin
|
| Connectors |
1 x DVI-D
1 x HDMI port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
1 x Q-Flash Plus button
|
| USB Ports |
4 x USB 3.2 Gen 1
4 x USB 2.0
|
| Dimension | |
| Other |
Description
Motherboard GIGABYTE B550M-DS3H Socket AM4, 4 x DDR4
- Supports 3rd Gen AMD Ryzen™ Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
