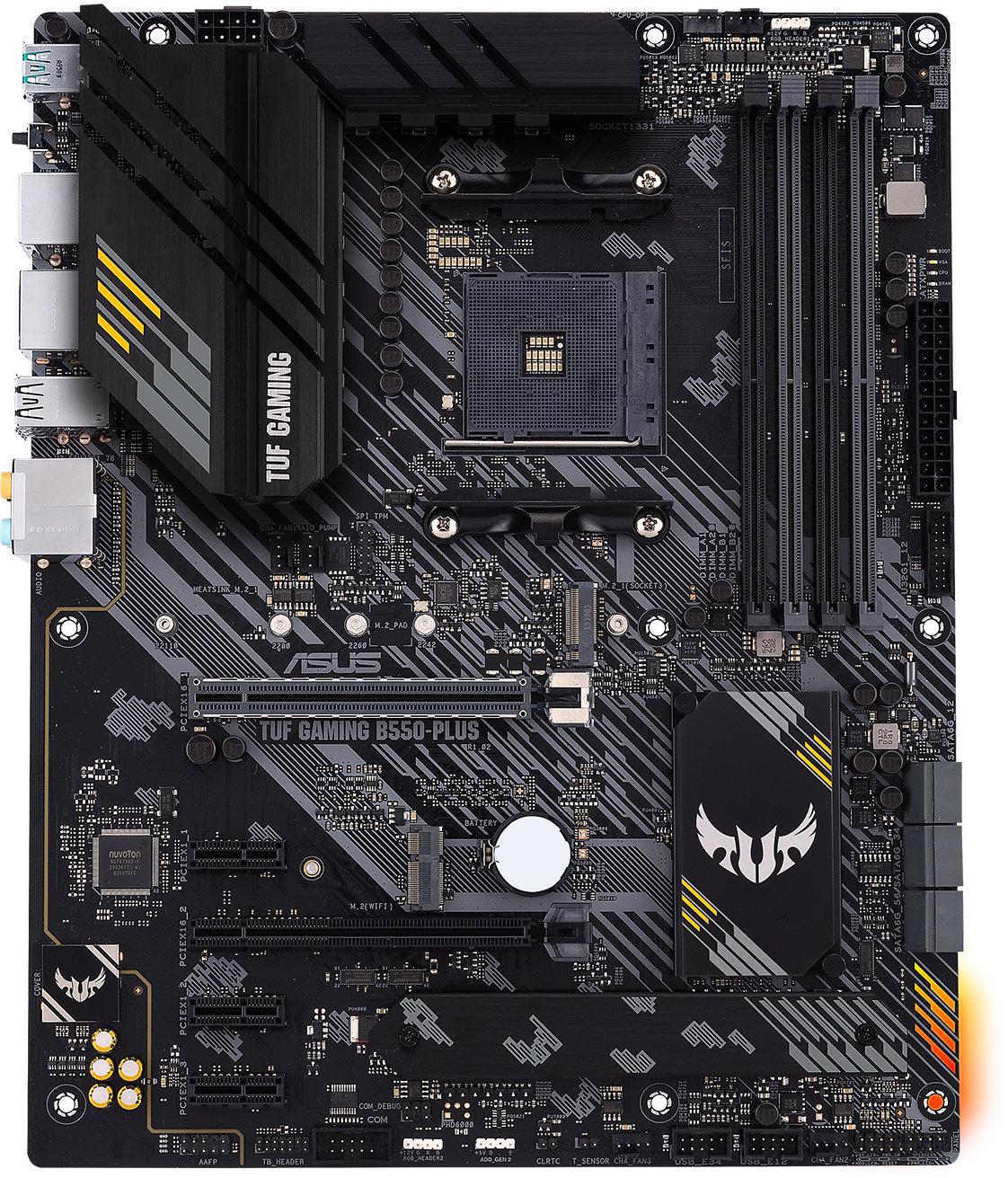

Motherboard ASUS TUF B550-PLUS GAMING socket AM4
Specifications
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB14G0-M0EAY0 |
| Barcode | 4718017749435 |
| CPU Socket |
AM4
|
| Chipset |
AMD B550
|
| CPU supports |
3rd Generation AMD
4th Generation AMD
5000 Series AMD Ryzen
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
4600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
TUF LANGuard
|
| Integrated Wi-Fi | |
| PCI-E x16 |
1 x PCIe 4.0/3.0 x16
1 x PCIe 3.0/2.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
3
|
| PCI-E slots | |
| Interface Serial ATA |
6 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 PCIE 3.0 x4 and SATA modes
1 x M.2 Socket 3 with M Key type 2242/2260/2280/22110 SATA and PCIe 4.0 x4 SSD support)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24-pin;1 x 8-pin
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
5 x Audio jacks
|
| USB Ports |
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen2
2 x USB 2.0
|
| Dimension | |
| Other |
Description
Motherboard ASUS TUF B550-PLUS GAMING socket AM4, 4xDDR4, Aura Sync, PCIe 4.0, Dual M.2, 2.5GB Lan
DURABLE.STABLE.RELIABLE.
TUF Gaming B550-Plus distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- Made for online gaming: 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard, and Turbo LAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI noise-canceling microphone: provides crystal-clear in-game voice communication
