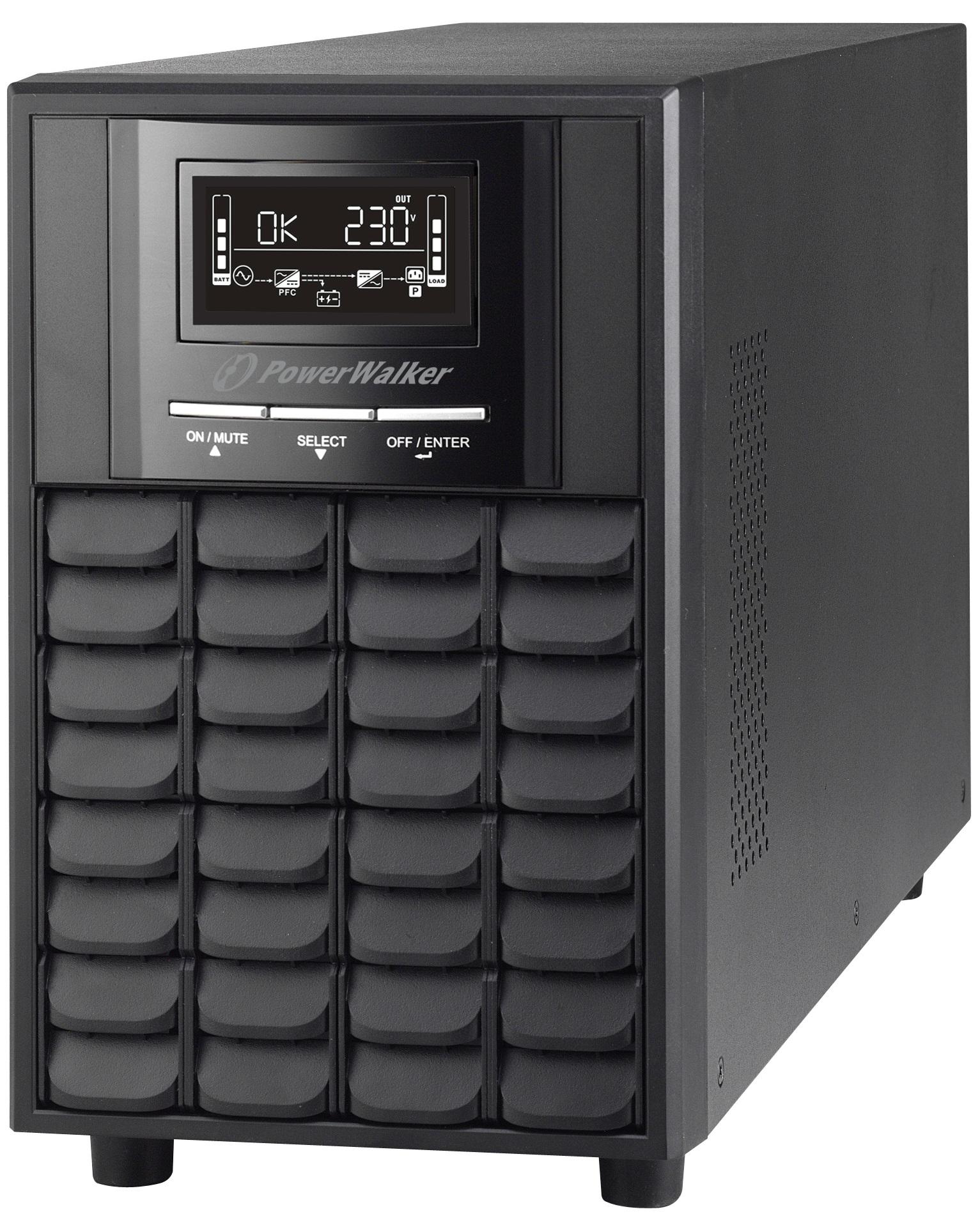

UPS POWERWALKER VI 1500 CW IEC, 1500 VA, Line Interactive
Specifications
| Manufacturer | POWERWALKER |
| Warranty | 24 months |
| Barcode | 4260074981605 |
| Type |
Line-interactive
|
| Input Voltage |
162-290 VAC
|
| Capacity |
1500VA / 1050W
|
| Nominal Output Voltage |
208/220/230/240 VAC
|
| Batteries |
12V/9Ah
|
| Sound Alarm |
Yes
|
| Overload Protection |
Yes
|
| Input Connections |
C14
|
| Output Connections |
8x IEC C13
|
| Front Panel |
LCD
|
| Waveform |
Pure Sine Wave
|
| Number of batteries |
2
|
| External Battery Connection |
Optional Battery Pack
|
| Communication |
USB
RS-232
Extension Slot
EPO
|
| Recharge Time |
4h to 90%
|
| Noise Level |
< 45dB
|
| Frequency Range(Output) |
±1Hz (battery mode)
|
| Alarm |
Yes
|
| Dimension |
145 x 220 x 397 mm
|
Description
AVR with HID and Pure Sine Wave;
Fully automatic and silent operation;
Advanced LCD displaying load in Watt and backup time in minutes;
Easy to connect Battery Packs available;
Intelligent slot fo SNMP, Modbus, AS400 communication;
Capacity: 1500 VA/1050 W
Input Voltage Range: 162-290 VAC
Output Voltage: 208/220/230/240 VAC
Voltage Regulation(Battery Mode): ± 1,5%
Output Frequency: 50 or 60 Hz
Frequency Regulation(Battery Mode): ±1Hz
Charger 1.4A
Protection: Overload, discharge, and overcharge protection
Battery:
Battery Type: 12V / 9 Ah x 2
Recharge Time: 4 h to 90%
Transfer Time: 2-6 ms typical, 10 ms maximal
Connections:
Interface: USB
Outlets: 8 x IEC C13
RS232, Extension Slot, EPO Port
Dimension: 145 x 220 x 397mm
Weight:12,4 kgs
Color: Black
Additional Features:
LED Indicators
Audio Indicators
AVR, HID
