Description

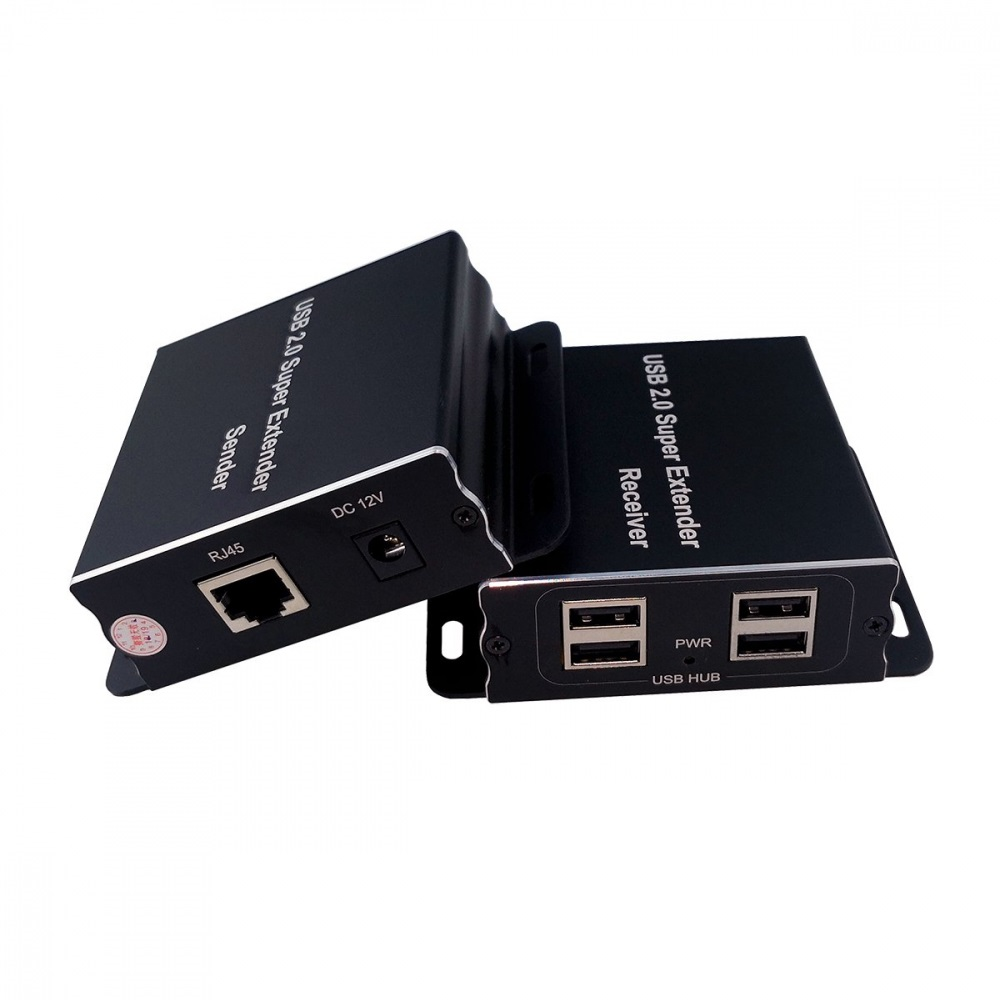

ASKHU04-USB 1x4 USB 2.0 Extender extends a USB signal up to 100m using a single CAT5e/6 cable.
It supports USB2.0 with data rates up to 480 Mbps in addition to backward-compatibility with USB 1.1.
The receiver unit allows the connections of up to 4 USB devices, providing access to printers,
scanners, cameras external storage media, digital signage, and automated control systems.

USB input interface-------------------------------------------------------1xUSB-A/F
USB output interface---------------------------------------------------- -4xUSB-A/F
Compatible USB version----------------------------------------USB 1.1 and USB 2.0
Wiring method------------------------------------------------------------IEEE-568B
Maximum working current-----------------------≤60m AWG23 CAT6 standard cable
Input cable distance--------------------------------≤5m AWG24 USB standard cable
output cable distance-------------------------------≤5m AWG24 USB standard cable
Supports data transfer rates-----------------------------------------------480Mbps
Power Adapter Specifications------AC(50/60HZ): 100V-240V, DC Output: 12V/2A
Operating Temperature range----------------------------------------(-15 to +55℃)
Operating Humidity range-----------------------5 to 90%RH（No Condensation)
