Description

Four HDMI input signals switched to one single HDMI sink devices

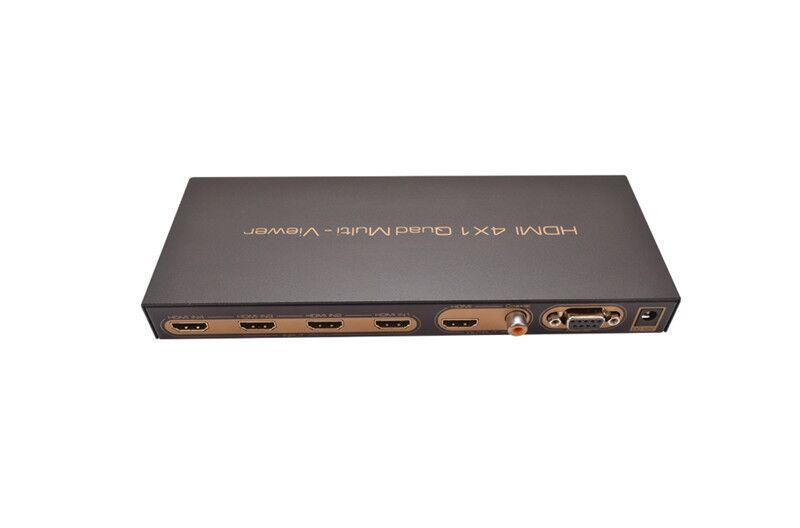

Support Four HDMI Input to one Quad Multi-Viewer
Support Four HDMI Input Switch Seamless
HDMI input resolution highest support: 1080P @60Hz resolution
HDMI output resolution:720P/ 60Hz. 1080P/ 60Hz；
Support SPDIF Coaxial digital audio format: Dolby digital (AC3), DTS and LPCM2.0
Support IR Remote Control and Push Button at device control.
Support RS232 Control and the device can do software upgrade by the PC.
LED indication: when source or sink is working, LED related will go bright.
Led Status Light allows the user to know the working status easily.
No loss of quality
Installs in minutes
Need DC12V/1.5A power supply

HDMI input resolution ………………………………1080p/1080i/720p/576p/576i/480p/480i
Max transmission bandwidth…….………………….………………………………….. 225MHz
Max baud rate…………………………………………………………………………….6.75Gbps
Input/Output TMDS signal ………….…………………………..……………… 0.5~1.5Volts p-p
Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…... ……………………………….. ≤10m AWG26 HDMI standard cable
Output cable distance…………………………………..... ≤10m AWG26 HDMI standard cable
Max working current…………………………………………………………………………700mA
Power adapter format……………..Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1.5A
Operating Temperature range……..…………….………………………………………0 to +40℃
Storage Temperature range…………………………………………………………… -15 to +55℃
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Storage Humidity range………………………….….……….…5 to 95%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………..…220X87X23(mm)
Weight…..………………………………………………………..…….……..…………………443g
