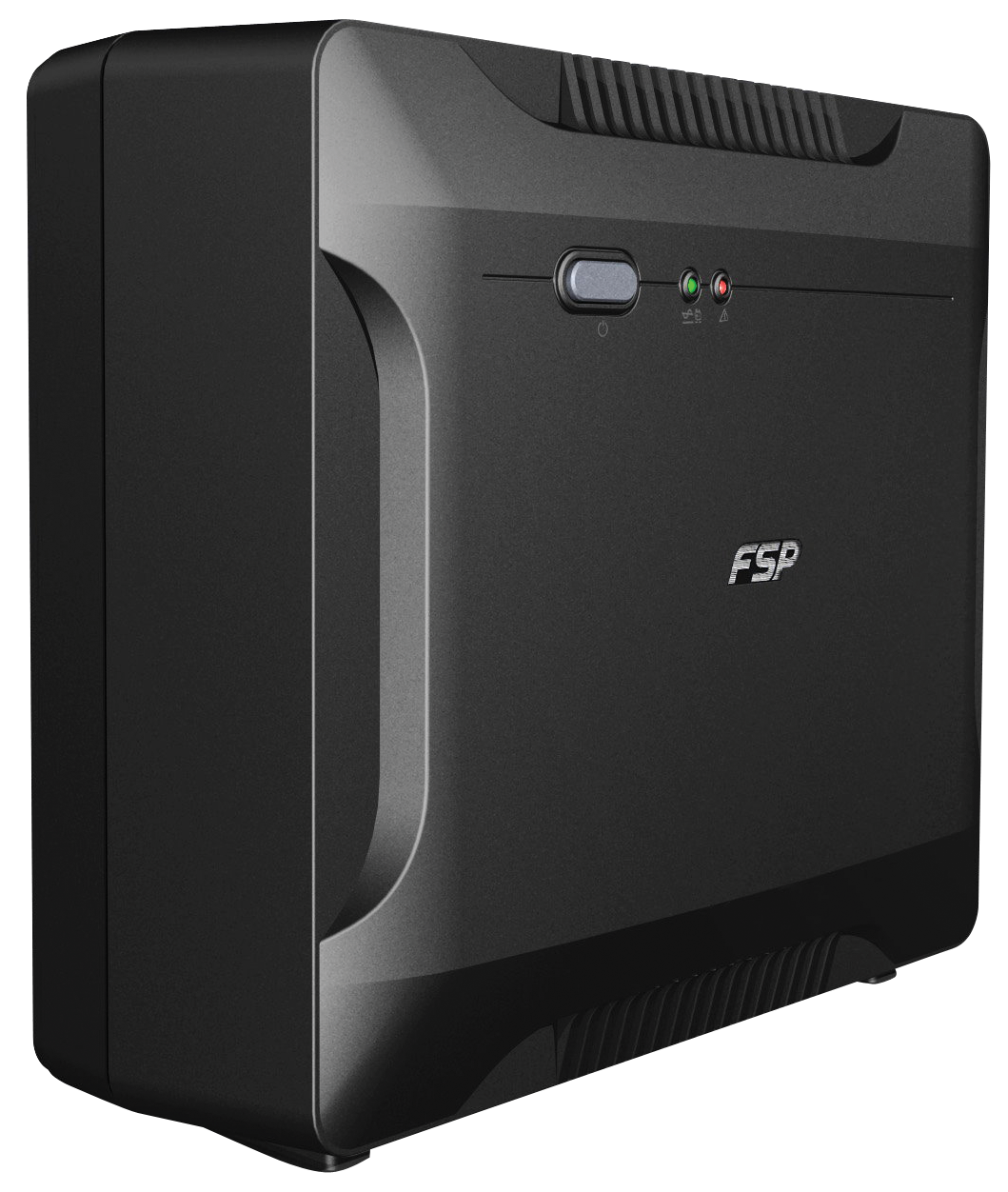

UPS FSP Nano 600, 600VA, Off-Line
Ref. number: FORT-UPS-600NANO
Price: 123.23 BGN
Specifications
| Manufacturer | FSP GROUP |
| Warranty | 24 months |
| Product code | PPF3600210 |
| Barcode | 4711140481401 |
| Type |
Off-line
|
| Input Voltage |
180-270 VAC
|
| Capacity |
600VA / 360W
|
| Nominal Output Voltage |
120 VAC or 230 VAC ± 10%
|
| Batteries |
12V/7Ah
|
| Sound Alarm |
Yes
|
| Overload Protection |
Yes
|
| Output Connections |
2x Schuko Outlet
|
| Front Panel |
no LCD
|
| Waveform |
Simulated Sine Wave
|
| Number of batteries |
1
|
| External Battery Connection |
No optional battery pack
|
| Communication |
2 Schuko outlets
|
| Recharge Time |
8h to 90%
|
| Backup Time |
Backup Time 120 W Load - 10-15 min;
|
| Frequency Range(Output) |
±1Hz
|
| Alarm |
Yes
|
| Dimension |
228 x 82.5 x 207 mm
|
Description
Capacity: 600 VA / 360W
Input:
Voltage: 110 / 120 VAC or 220 / 230 / 240 VAC
Voltage Range: 90~145 VAC or 180~270 VAC
Frequence: 60/50 Hz
Output:
Voltage: 120 VAC or 230VAC ± 10%
Frequence Range: 50Hz or 60Hz ± 1Hz
Transfer Time: Typical 2-6 ms
Waveform (Batt. mode) Simulated Sine Wave
Battery:
Battery Type: 12V / 7Ah x 1
Typical Recharge Time: 8 hours recover to 90% capacity
Backup time ( one PC load at 120 W ): 10~15min.
Full protection: Discharge, overcharge, short circuit, and thermal protection
Outlet: 2 x Schuko
Dimension: 228 x 82.5 x 207mm
Net Weight: 2.7 kgs
Additional Features:
LED Indicators
Alarm
