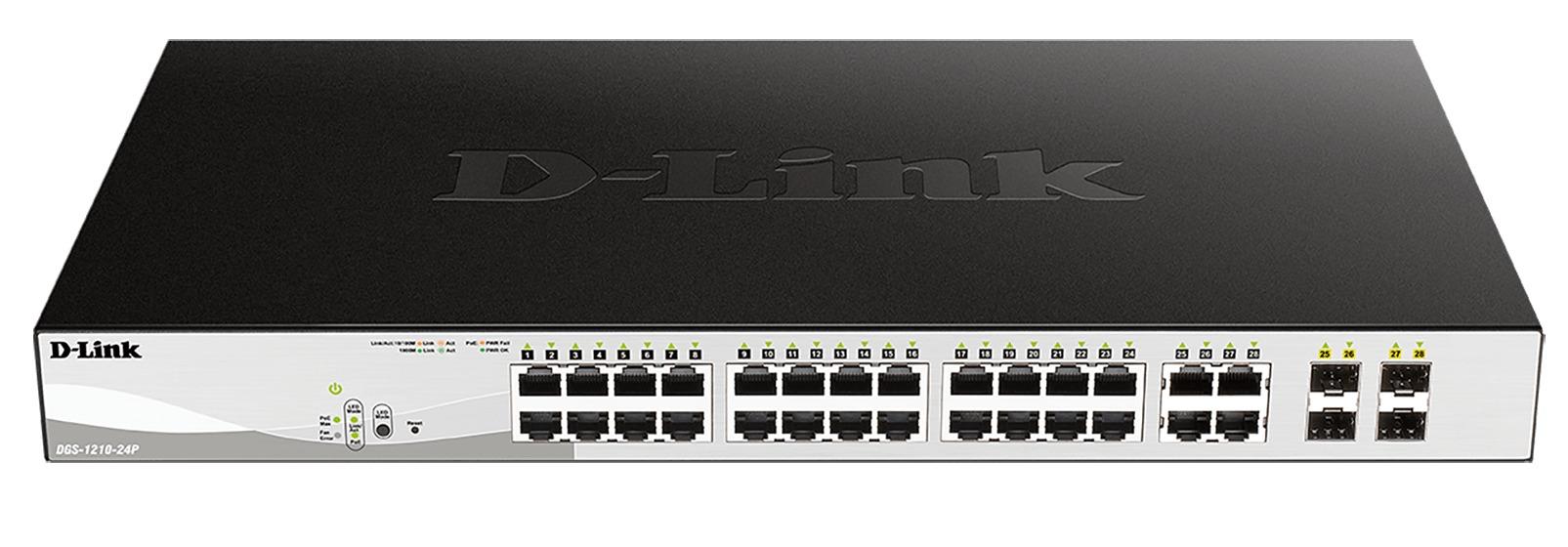

Суич D-Link DGS-1210-24P/E, 24 PoE 10/100/1000 Base-T port with 4 x 1000Base-T /SFP ports, Управляем, Монтаж в шкаф
Технически характеристики
| Производител | D-Link |
| Гаранция | Доживотна |
| Продуктов код | DGS-1210-24P/E |
| Баркод | 790069468537 |
| Портове. |
24x10/100/1000Base-T; 4xSFP
|
| Стандарти. |
802.3af
802.3at
|
| Захранване |
100 до 240V/AC, 50 до 60Hz
|
| Сигурност |
Port Security; Supports up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control; Static MAC; D-Link Safeguard Engine; DHCP Server Screening; Trusted Host; ARP Spoofing Prevention; Max. 64 entries; SSL; Supports v1/v2/v3; Supports IPv4/I
|
| Управление |
Web-based GUI; Telnet Server; TFTP Client; IPv6 Neighbor Discovery; Configurable MDI/MDIX; SNMP; Supports v1, v2, v3; SNMP Trap; System Log; BootP/DHCP Client; D-Link Network Assistant support; SNTP; ICMPv6; IPv4/v6 Dual Stack; DHCP Auto Configuration; RM
|
| Монтаж в шкаф |
Да
|
| Консумация (W) |
30W / 193W (PoE)
|
| Размери |
440 x 250 x 44 mm
|
| Други |
Таблица с MAC адреси: 8K
|
Описание
24 PoE 10/100/1000 Base-T port + 4 TP/SFP Combo Ports
- 24 x 10/100/1000Mbps Auto-Negotiating Ports
- 4x 1Gbps Combo TP Port/SFP Slot
- Port 1-24 802.3at up to 30W
- max PoE budget 193W
- dlink|green 3.0, advance power saving features
- 802.3az Energy Efficient Ethernet (EEE) port power save in idle mode
- Jumbo frames up to 13000 bytes, 16K MAC-addresses
- Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX
- IEEE 802.3x Flow Control
- 802.3ad Link Aggregation
- Asymmetric VLAN, Auto Voice/Surveillance VLAN
- Traffic Segmentation
- 802.1p priority queues
- MAC/IP filtering
- MAC/IP-based ACL
- 802.1X port-base Access Control, Port Security
- D-Link Safeguard Engine
- Static Routing and Default Route
- IPv6 Ready
- D-Link Network Assistant Utility (DNA) from firmware ver. 4.1, web based management, compact CLI
- D-View 6.0 support, RMON
- Fanless design
- 19" Rackmount Installation
- Firmware Release 7 not backwards compatible to Hardware Version D1/D2
