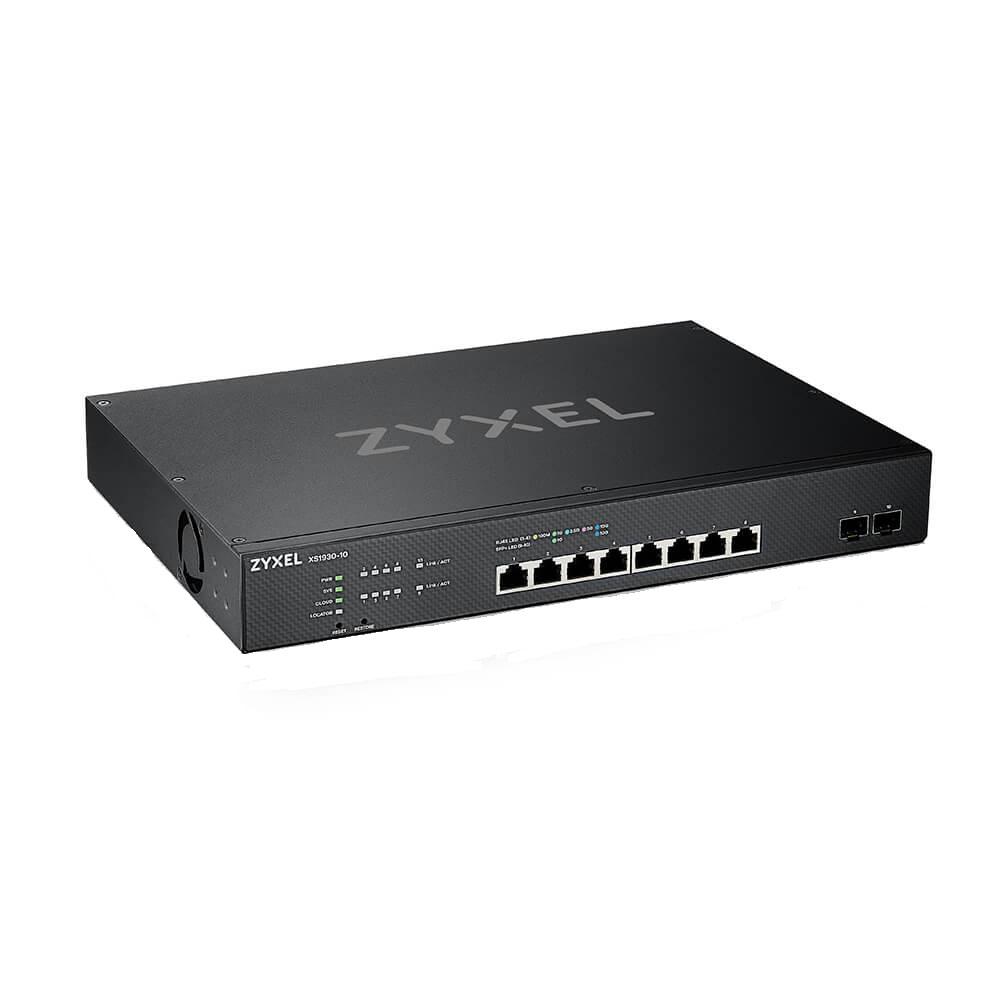

Суич ZYXEL XS1930-10, 8 портов управляем, 10Gb, 2xSFP, за монтаж в шкаф

Реф. номер: ZYXEL-XS1930-10
Цена: 1147.33 лв.
Технически характеристики
Производител ZYXEL
Гаранция Доживотна
Продуктов код XS1930-10-ZZ0101F
Баркод 4718937605248
Портове.
8 x 10GbE RJ-45; 2 x 10GbE SFP
Стандарти.
IEEE 802.1q
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3z
IEEE 802.3x
IEEE 802.1p
IEEE 802.3az
IEEE 802.1s
IEEE 802.1w
Захранване
100 до 240V/AC, 50 до 60Hz
Сигурност
IEEE 802.3x flow control, Storm control: broadcast, multicast, unknown unicast (DLF)
Управление
IPv6 over Ethernet (RFC 2464); IPv6 addressing architecture (RFC 4291); Dual stack (RFC 4213); ICMPv6 (RFC 4443); Path MTU (RFC 1981); Minimum path MTU size of 1280 (RFC 5095); Encapsulation for maximum PMTU of 1500; Neighbor discovery (RFC 4861); DHCPv6
Монтаж в шкаф
Да
Консумация (W)
44.30
Размери
330 x 230 x 44 mm
Други
Таблица с MAC адреси: 16K

Описание

Суич, тип Fixed Port

Общ брой портове 10

Основни портове, тип 10x10GBase-T

Uplink портове 2 dual personality

Управление Web interface; Management through SNMP; Remote firmware upgrade by Web; Configuration saving and retrieving; DHCP; NTP; SNMP v1, v2c, v3; SNMP trap group; RMON (1, 2, 3, 9); ICMP echo/echo reply; Syslog; IEEE 802.1AB LLDP; IEEE 802.1AB LLDP-MED

Stackable ZyXEL iStacking™

Fans Fanless design

Захранване Input voltage: 100 - 240 V AC, 50/60 Hz; Max. power consumption: 94.1 (watt)

Routing Layer 2 Only

Памет (Flash, RAM) -

Капацитет за маршрутизиране/превключване, Gbps 240 Gbps

Пропускателна способност, Mpps 178.6 Mpps

MAC адреси 16000 MAC address table size

VLAN (брой, стандарти) 802.1Q Static VLANs/Dynamic VLANs: 1 K/4 K; Port-based VLAN; Protocol-based VLAN; IP Subnet-based VLAN; MAC-based VLAN; Private VLAN; Voice VLAN; VLAN ingress fltering; GVRP; LACP algorithm of source/destination MAC/IP; L2PT

QoS 8 hardware queues per port; 802.1p queuing methods: SPQ, WRR, WFQ; Storm control: broadcast, multicast, unknown unicast (DLF); 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable); DiffServ (DSCP); Rate limiting per IP/TCP/UDP per port

L2 мрежови стандарти IEEE 802.3ab, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3x flow control, IEEE 802.3az EEE support, IEEE 802.3ad LACP aggregation, IEEE 802.1AB, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X

L3 мрежови стандарти -
IPv6 functionality IPv6 over Ethernet, IPv6 addressing architecture, Dual stack, ICMPv6, Path MTU, Minimum path MTU size of 1280, Encapsulation for maximum PMTU of 1500, Neighbor discovery, DHCPv6 relay

Сигурност 802.1X, Port security, Layer 2 MAC filtering, Layer 3 IP filtering, RADIUS, TACACS+, SSL, MAC freeze, DHCP snooping, ARP inspection, Static IP-MAC-Port binding, Port isolation, IP source guard, ACL packet filtering (IPv4/IPv6), CPU protection

Размери, mm 440 x 330 x 44.5 mm, 19" rackmount
