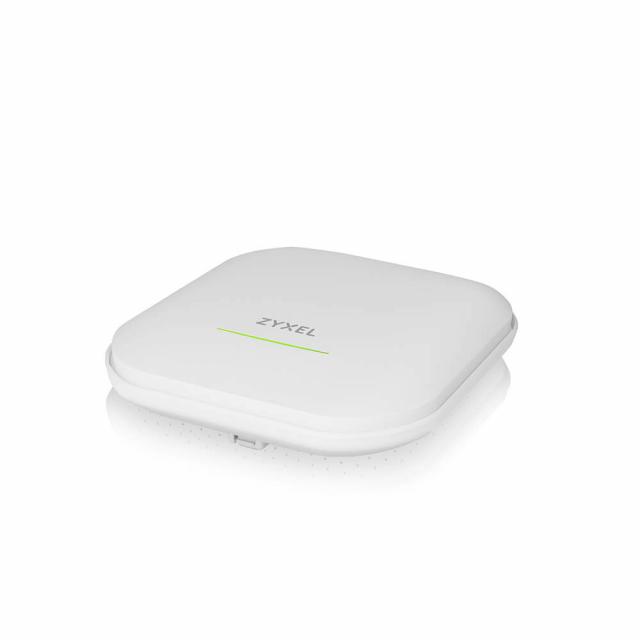

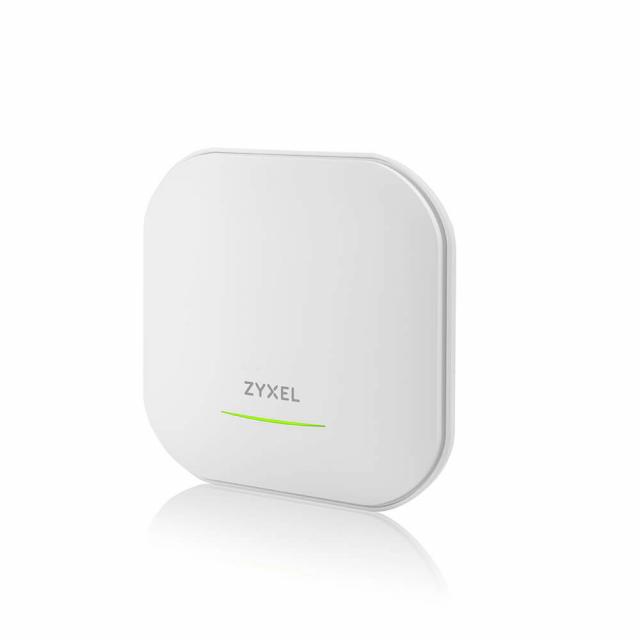

Безжична точка за достъп ZYXEL NWA220AX, AXE5400 WiFi 6E 2.4/5/6GHz
Безжична точка за достъп ZYXEL NWA220AX, AXE5400 WiFi 6E 2.4/5/6GHz
с ДДС
Купи онлайн на изплащане
|
размер вноска
|
размер вноска |
|
|---|---|---|
| 3 вноски |
|
- |
| 6 вноски |
|
|
| 9 вноски |
|
|
| 12 вноски |
|
|
| 15 вноски |
|
|
| 24 вноски |
|
|
Standard
IEEE 802.11 ax/ac/n/g/b/a
MIMO
MU-MIMO
Wireless speed
2.4GHz: 575 Mbps
5GHz: 4800 Mbps
6GHz: 4800 Mbps
Frequency band
2.4 GHz:
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
6 GHz
USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
European (ETSI): 5.925 to 6.425 GHz
Bandwidth
20-, 40-,80- and 160-MHz
Conducted typical transmit output power*1
(limited by local regulatory requirements)
US (2.4GHz/5GHz/6GHz): 24/25/24dBm
EU (2.4GHz/5GHz/6GHz): 18/22/19dBm
RF Design
Antenna type
4x4 + 2x2 MIMO Embedded Antenna
Antenna gain
2.4 GHz: Peak Gain 3dBi
5 GHz: Peak Gain 5dBi
6 GHz: Peak Gain 6dBi
Minimum receive sensitivity
Min. Rx sensitivity up to -101 dBm
WLAN Feature
Band steering
Yes
WDS/Mesh*2
Yes
Fast roaming
Pre-authentication, PMK caching and 802.11r/k/v
DCS
Yes
Load balancing
Yes
Advanced Cellular Coexistence
Yes
Security
Encryption
WEP
WPA
WPA2
WPA3
Authentication
IEEE 802.1X
RADIUS authentication
Access management
L2-isolation
MAC filtering
Rogue AP detection
Networking
IPv6
Yes
VLANs
Yes
WMM
Yes
U-APSD
Yes
Management
Operating mode
Nebula cloud managed
Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
Web UI/CLI
Yes
SNMP
NO
Physical Specifications
Item
Dimensions (WxDxH)(mm/in.)
180 x 180 x 42 mm / 7.09 x 7.09 x 1.65
Weight (g/lb.)
650g/1.43lb
Packing
Dimensions (WxDxH)(mm/in.)
197 x 190 x 60 mm/ 7.76 x 7.48 x 2.36
Weight (g/lb.)
780g/1.72lb
Included accessories
Mount plate
Mounting screws
MTBF (hr)
711,333

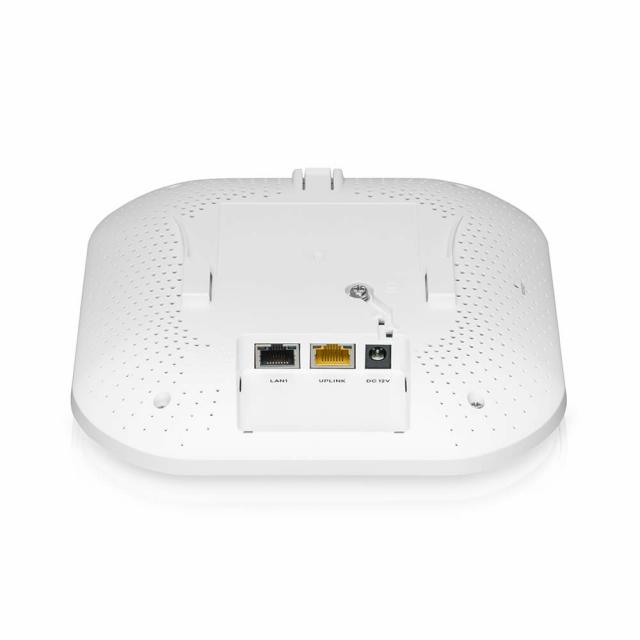

Physical Interfaces
Ethernet port
1 x 1/2.5Gbps LAN
1 x 1Gbps LAN
Power
PoE (802.3)at: power draw 21 W
DC input : 12 VDC 2A
PoE modes
IEEE802.3af: No Wireless
IEEE802.3at: Unrestricted
IEEE802.3bt: Unrestricted
Environmental Specifications
Operating
Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing)
Storage
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 95% (non-condensing)
Certifications
Radio
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
EN 303 687
LP0002
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN60601-1-2
BSMI CNS13438
Safety
Safety EN 62368
BSMI CNS14336-1
| Производител | ZYXEL |
| Гаранция | 24 месеца |
| Продуктов код | NWA220AX-6E-EU0101F |
| Баркод | 4718937628643 |
| Стандарт Wi-Fi |
802.11 ax
|
| Честота (GHz) |
2.4 / 5 / 6 GHZ
|
| Портове |
2 x 10/100/1000
|
| Скорост на трансфер (Mb/s) |
575 - 2.4 GHz; 1200 - 5 GHz
2.4GHz - 575 Mbps; 5GHz - 4800 Mbps; 6GHz - 4800 Mbps
|
| Антена |
4x4 + 2x2 MIMO
|
| Захранване |
DC 12V; PoE
|
| Тегло |
0.650 kg
|
